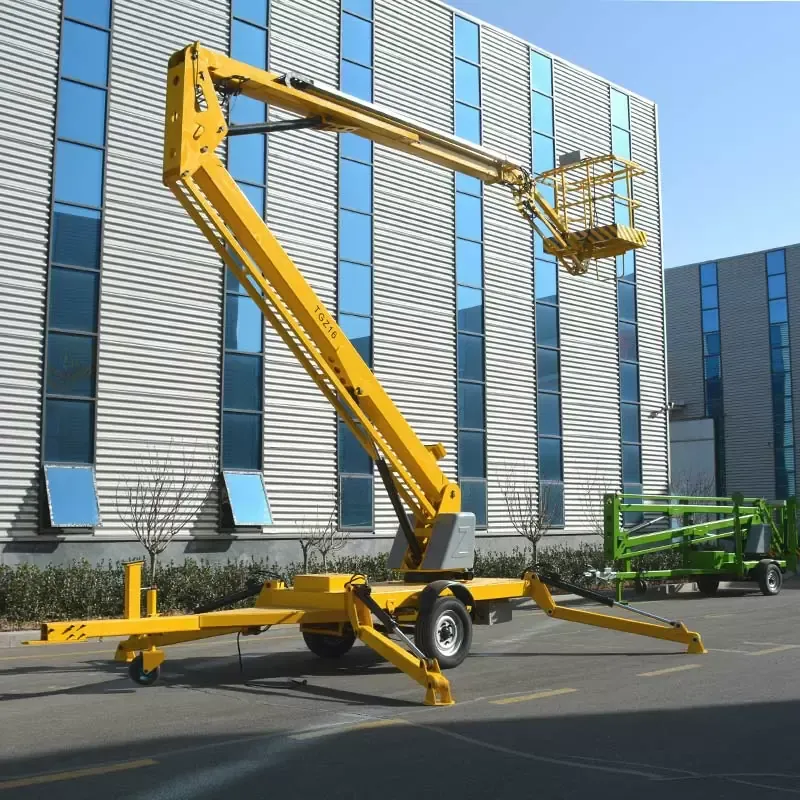

Trailer-mounted boom lifts are high-altitude lifting equipment with working heights ranging from 8m to 20m. Capable of crossing obstacles for aerial operations, the platform supports 360-degree rotation. Featuring compact structure and flexible steering, its narrow chassis allows the machine to access narrow passages and crowded work sites. It can also be operated by standby power.
PRODUCT DESCRIPTION

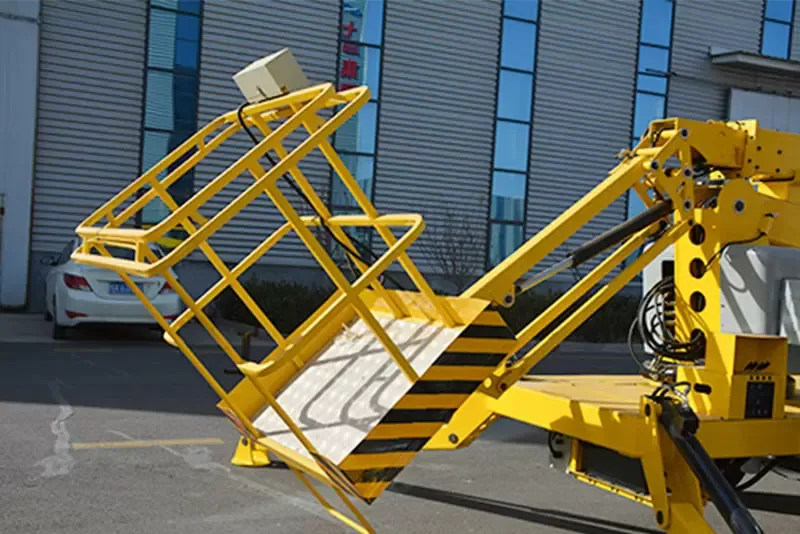

The trailer boom lift platform height is 8-20m .The working platform size is 1.2*0.8m, height is 1.1m and the loading capacity is 200kg. Power is AC,DC，diesel or both.The lift arm using a new type of high-quality steel, high strength, light weight, direct access to AC power to start, it can quickly set up safe and simple operation. The working table has large working radius and it can be 360 degrees rotated.
PRODUCT CUSTOMIZATION
We can customize products according to your requirements to make products more in line with your needs. Like color, brand, logo, nameplate, power(AC,DC,Diesel), voltage.
PRODUCT DETAILS
Obstacles can be overcome, fast erection, automatic hydraulic support feet;
The height of each foot can be adjusted according to the terrain to achieve level state of the platform;
Multi-point operation without moving;
The trailer type is easy to transport and can be towed directly and quickly;
It is widely used in installation, maintenance and climbing operations in municipal, electric power, street lights, advertising, docks and other industries,and is suitable for various rough terrains in the field.
| Model | TGZ08 | TGZ10 | TGZ12 | TGZ14 | TGZ16 | TGZ18 | TGZ20 |
| Max. Working Height | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
| Max. Platform Height | 8m | 10m | 12m | 14m | 16m | 18m | 20m |
| Max. Loading Capacity | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg | 200Kg |
| Max. Working Distance | 4.5m | 5.7m | 6.4m | 8.5m | 9.5m | 10.9m | 12.5m |
| Platform Size(L*W*H) | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m |
| Transportation Size(L*W*H) | 5.2X1.585X1.9m | 5.4X1.665X1.9m | 6.4X1.665X1.9m | 6.0X1.73X2.1m | 7.0X2.73X2.2m | 7.1X1.85X2.26m | 7.7X1.85X2.26m |
| Outrigger span (Vertical*Horizontal) | 3.4X3.2m | 3.7X3.45m | 3.7X3.45m | 3.97X4.18m | 4.2X4.3m | 4.94X4.76m | 5.14X4.76m |
| Turntable Rotation Angle | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree | 360 Degree |
| Platform Rotation Angle | 160 Degree | 160Degree | 160Degree | 160Degree | 160Degree | 160Degree | 160Degree |
| Tyre | 185/75R14C | 185/75R14C | 185/75R14C | 215/75R16C | 215/75R16C | 215/75R16C | 215/75R16C |
| Control | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Weight | 1538Kg | 1600Kg | 1800Kg | 2350Kg | 2900Kg | 4300Kg | 4450Kg |
| Diesel Powered | 10HP | 10HP | 10HP | 12HP | 12HP | 15HP | 15HP |
| DC pumping station | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) | 24V/4.5KW(Optional Configuration) |
| Battery | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 180Ah(Optional Configuration) | 4X6V 210Ah(Optional Configuration) | 4X6V 210Ah(Optional Configuration) |
| AC | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/1.5KW or 220V/2.2KW | 380V/2.2KW or 220V/2.2KW | 380V/2.2KW or 220V/2.2KW |
