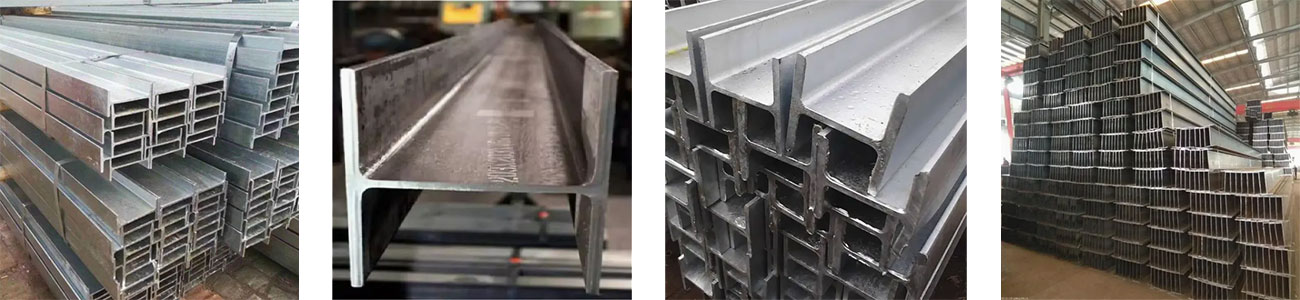

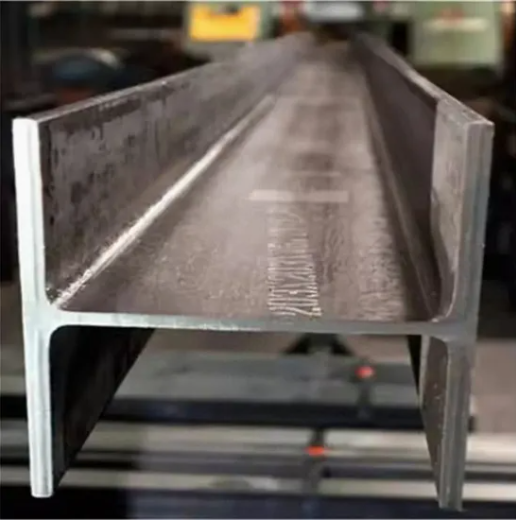

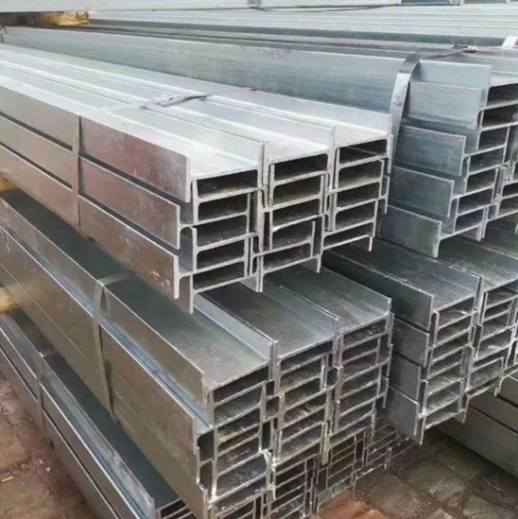

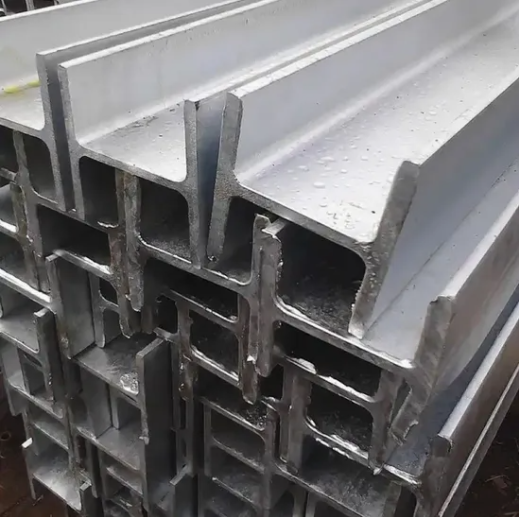

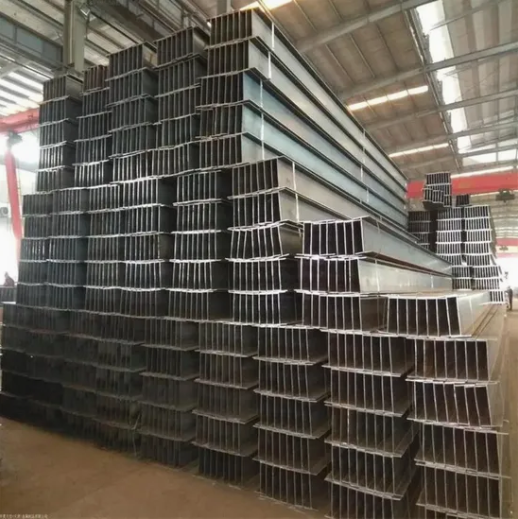

H-shaped steel 100*100-300*1000 in stock
With its superior cross-sectional distribution and strong bending resistance, H-beams provide excellent seismic stability while achieving structural lightweighting, making them the preferred profile for modern high-rise buildings and large-span spatial structures.
Specification | National Standard Weight per Meter (KG/M) | Japanese standard meter weight (KG/M) | Specification | National standard weight per meter (KG/M) | Japanese standard meter weight (KG/M) |
100*100*6*8 | 17.2 | 16.9 | 388*402*15*15 | 141 | 140 |
125*125*6.5*9 | 23.8 | 23.6 | 390*300*10*16 | 107 | 105 |
148*100*6*9 | 21.4 | 20.7 | 394*398*11*18 | 147 | 147 |
150*75*5*7 | 14.3 | 14 | 394*405*18*18 | 169 | 168 |
150*150*7*10 | 31.9 | 31.1 | 396*199*7*11 | 56.7 | 56.1 |
175*90*5*8 | 18.2 | 18 | 400*200*8*13 | 66 | 65.4 |
175*175*7.5*11 | 40.4 | 40.4 | 400*150*8*13 | 55.8 | 55.2 |
194*150*6*9 | 31.2 | 29.9 | 400*400*13*21 | 172 | 172 |
198*99*4.5*7 | 18.5 | 17.8 | 400*408*21*21 | 197 | 197 |
200*100*5.5*8 | 21.7 | 20.9 | 414*405*18*28 | 233 | 232 |
200*200*8*12 | 50.5 | 49.9 | 414*202*10*20 | 94.5 | 93.9 |
200*204*12*12 | 56.7 | 56.2 | 428*407*20*35 | 284 | 283 |
244*175*7*11 | 44.1 | 43.6 | 440*300*11*18 | 124 | 121 |
244*252*11*11 | 64.4 | 63.8 | 446*199*8*12 | 66.7 | 65.1 |
248*124*5*8 | 25.8 | 25.1 | 450*200*9*14 | 76.5 | 74.9 |
250*125*6*9 | 29.7 | 29 | 482*300*11*15 | 115 | 111 |
250*250*9*14 | 72.4 | 71.8 | 488*300*11*18 | 129 | 125 |
250*255*14*14 | 82.2 | 81.6 | 496*199*9*14 | 79.5 | 77.9 |
294*200*8*12 | 57.3 | 55.8 | 498*432*45*70 | 605 | 604 |
294*302*12*12 | 85 | 83.5 | 500*200*10*16 | 89.6 | 88.1 |
298*149*5.5*8 | 32.6 | 32 | 506*201*11*19 | 103 | 102 |
298*201*9*14 | 65.9 | 64.4 | 582*300*12*17 | 137 | 133 |
300*150*6.5*9 | 37.3 | 36.7 | 588*300*12*20 | 151 | 147 |
300*300*10*15 | 94.5 | 93 | 594*302*14*23 | 175 | 170 |
300*305*15*15 | 106 | 105 | 596*199*10*15 | 95.1 | 92.4 |
338*351*13*13 | 106 | 105 | 600*200*11*17 | 106 | 103 |
340*250*9*14 | 79.7 | 78.1 | 606*201*12*20 | 120 | 118 |
344*348*10*16 | 115 | 113 | 692*300*13*20 | 166 | 163 |
344*354*16*16 | 131 | 129 | 700*300*13*24 | 185 | 182 |
346*174*6*9 | 41.8 | 41.2 | 792*300*14*22 | 191 | 188 |
350*175*7*11 | 50 | 49.4 | 800*300*14*26 | 210 | 207 |
350*350*12*19 | 137 | 135 | 900*300*16*28 | 243 | 240 |
350*357*19*19 | 156 | 154 | 1000*300*19*36 | 313.3 | 310 |

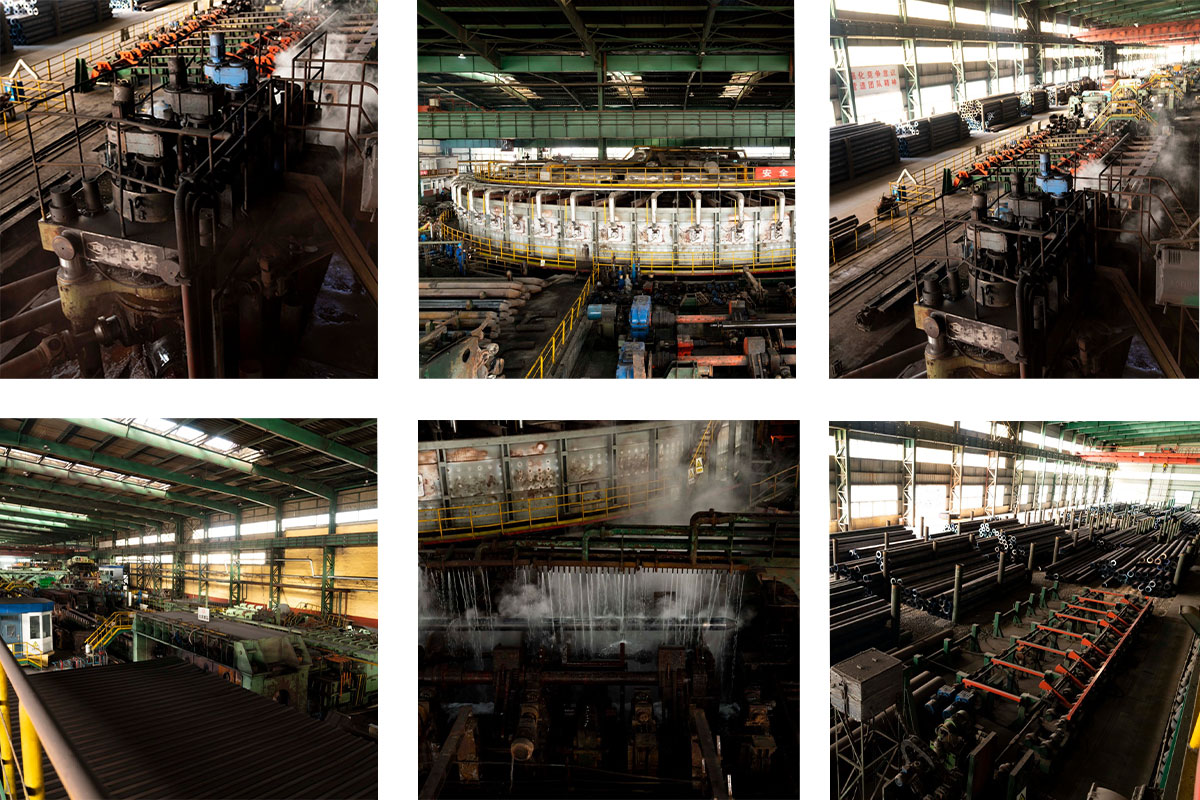

Equipped with world-class manufacturing technology—including large blast furnaces, modern converters, efficient continuous casting machines, and precision rolling lines—our steel plant delivers exceptionally stable and high-quality products.
We are Xin Ya Heng International Company, a manufacturing and trading company from China with 16 years of experience, and a leading steel producer/exporter. Our customers are from Africa, the Americas, Europe, and other regions.
